Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

Product Categories
Henan Lanphan Industry Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

Model Number : LGJ-100

Main Material : SS304

MOQ : 1 unit

Delivery Time : 15 working days

Vacuum degree : <10 Pa

Supply Ability : 5 units per month

Type : Pilot Freeze Dryer

Payment Terms : T/T

Condition : New

Cold trap temperature : -75℃

Price : $21300/unit

Capacity : 15kg/batch

Power(w) : 7500W

Certification : contact us

Weight : 742Kg

Place of Origin : Henan, China

Dimension(l*w*h) : 1140x1720x1910mm

Packaging Details : wooden box package

Warranty : One Year

Brand Name : Lanphan

After-sales service provided : Online support

Contact Now

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

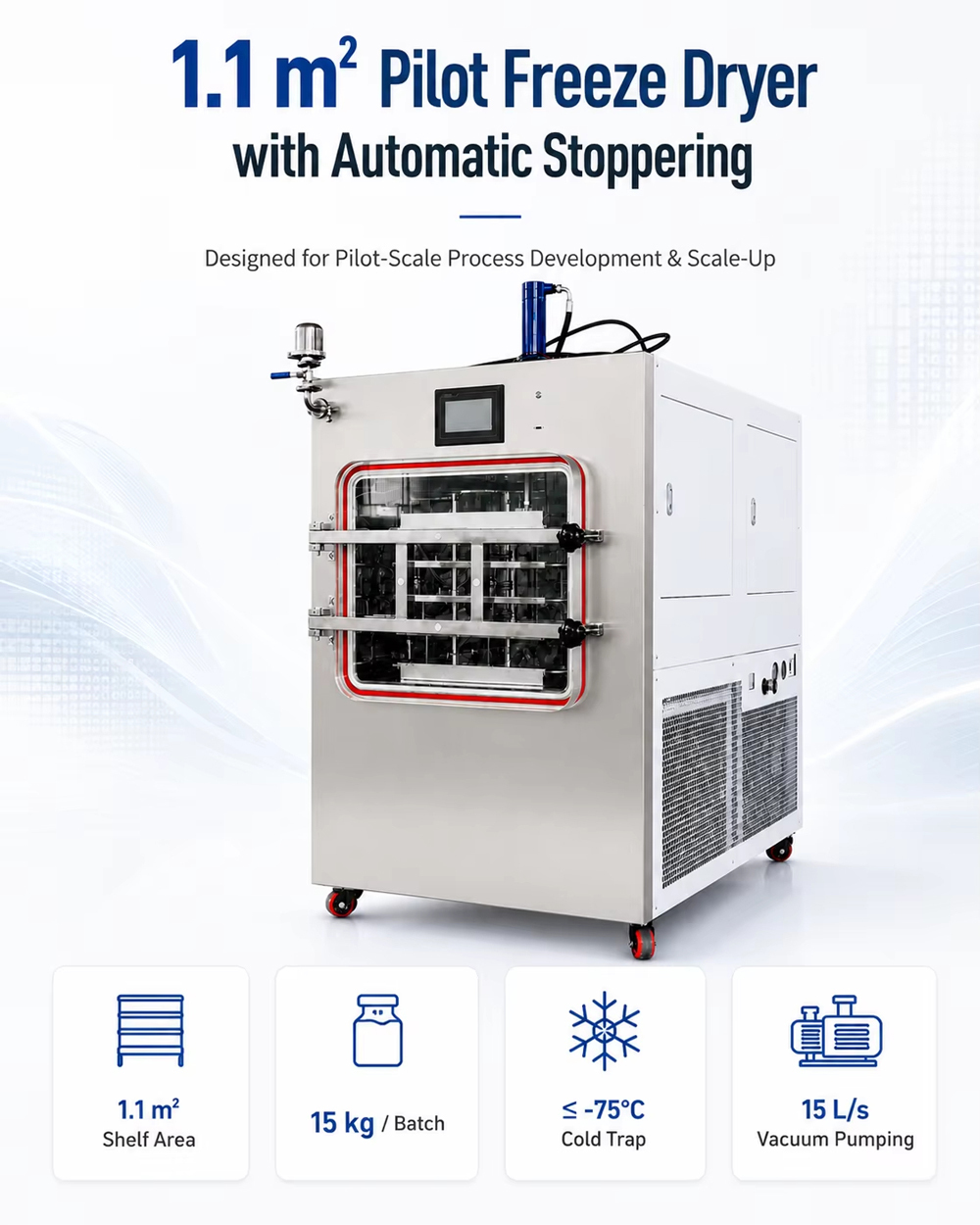

TECHNICAL SPECIFICATIONS

Freeze-Drying Area 1.1 m2
Condenser Temperature(No-load) ≤-75℃
Batch Capacity 15 kg/batch
Ultimate Vacuum (No-load) < 10 Pa
Tray Size 470*600 mm
Number of Trays 4 trays
Tray Spacing 80 mm
Pumping Speed 15 L/s
Ice Capture Capacity > 15 kg
Noise Level <80 dB
Power 7500 W
Main Material 304 Stainless Steel
Power Supply 3-phase 5-wire 380V, optional 220V
Overall Dimensions 1140*1720*1910 mm
Net Weight 742 kg

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

Automatic Stoppering Freeze Dryer Pilot Lyophilizer with Precision Temperature Control

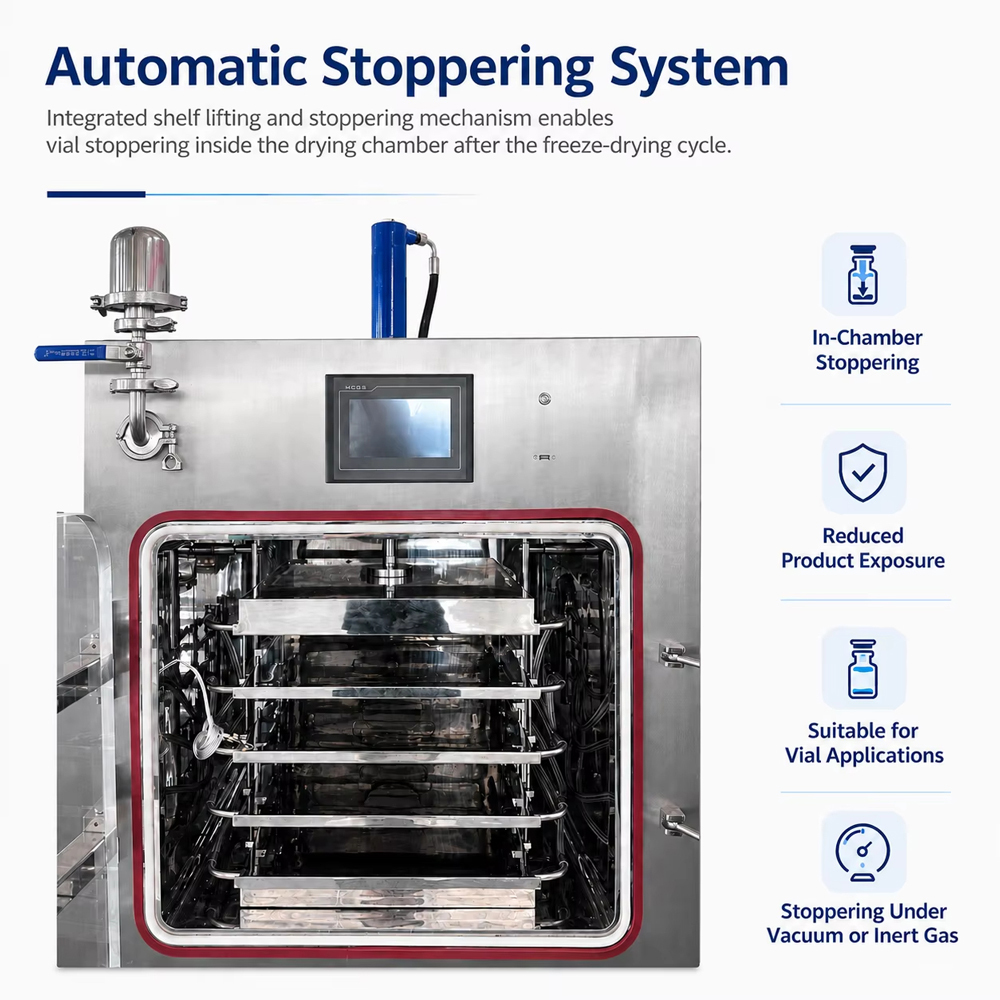

1. Drying Chamber & Cold Trap
Materials: Both the chamber and cold trap are constructed from high-quality 316L stainless steel, offering exceptional corrosion resistance.
2. Intelligent Control & Data Acquisition System
Features an industrial-grade 7- or 10-inch touchscreen paired with PLC.
Real-time Curves: Displays and records real-time data for shelf temperature, product temperature, cold trap temperature, and vacuum levels.
3. Refrigeration & Vacuum Systems
Imported Compressors: Uses eco-friendly refrigerants and offers rapid cooling; the cold trap can reach -50°C in just over ten minutes.
Dual-Gauge Vacuum Measurement: Equipped with capacitance manometers and Pirani gauges to ensure high-precision vacuum measurement and control.
